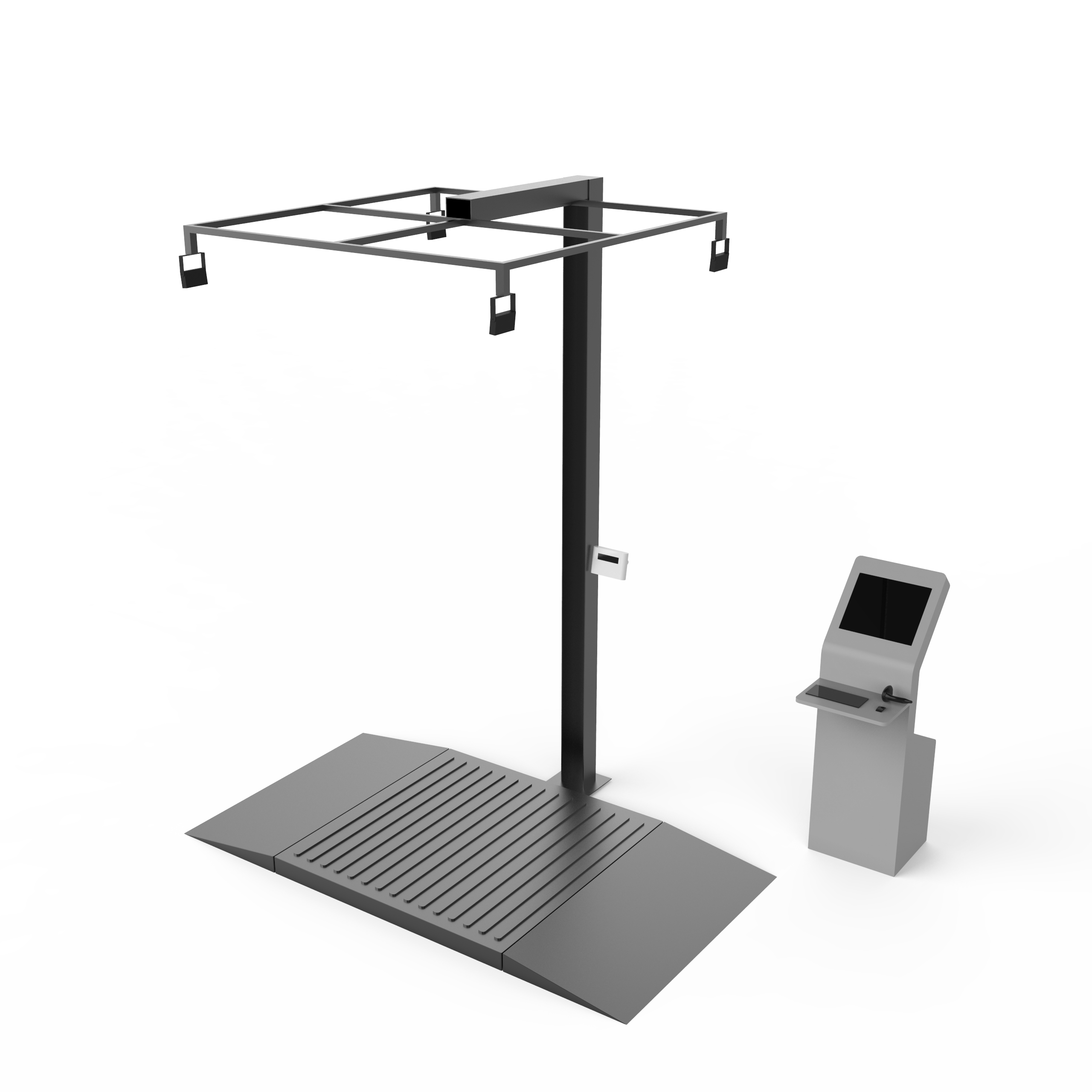

Static Freight Pallet Dimensioner Machine
Performance characteristics
☆ Apply to a variety of business scenarios in the logistics industry to effectively reduce the labor intensity of operators, improve work efficiency, and reduce labor input.
☆ Performs size, weight, photo, and barcode scanning of the target, prints labels, and saves measurement information and photos.
☆ It is more suitable for measuring the maximum outer volume of irregular objects while measuring regular cubes using infrared depth camera technology.
Technical parameter
Measurement Range | 2000mm x 2000mm x 2500mm |
Measurement Accuracy | 0.5cm/1cm/3cm (customizable) |
Weighing Range | 300kg ~ 3000kg |
Weighing Accuracy | 3000e (0.1kg ~ 1kg) |
Weighing Platform Size | 1500mm x 1500mm (customizable) |
Weighing Platform Height | 110mm(Customizable ramps) |
Single measurement time | ≤ 1s from barcode reading to signal end condition (signal lamp on) |
Measurement interval | ≤3s After each measurement, return to the idle state |
Barcode Reader | Handheld Bluetooth Reader |
| 3D volumetric camera | 1/2/3/4 combination (customized by measurement range) |
